石墨泵系列
| 型號意義 | TICS80-65-160 |
| T | 企業代號 |
| I | 國際化工離心泵 |
| C | 磁力驅動 |
| S | 石墨 |
| 80 | 進口口徑80mm |
| 65 | 出口口徑65mm |
| 160 | 葉輪名義直徑160mm |
| 輸送介質： | 硫酸，鹽酸，氫氟酸，王水，溴化物，苯，酚，脂，氯等強酸性腐蝕性液體 |
| 適用行業： | 化工，醫藥，制酸，易燃，易爆，易揮發，高危行業 |
| 產品特點： | 無泄漏、耐酸 |
| 結構形式： | 臥式、泵與電機直聯 |
| 口徑： | 25～200mm |
| 流量： | 1.5～400m3/h |
| 揚程： | 10～80m |
| 轉速： | 1450/2900r/min |
| 工作溫度： | -20～+120℃ |
| 壓力等級： | 1.6Mpa |
| 功率： | 1.1～110KW |
一、產品簡介：
產品概述：

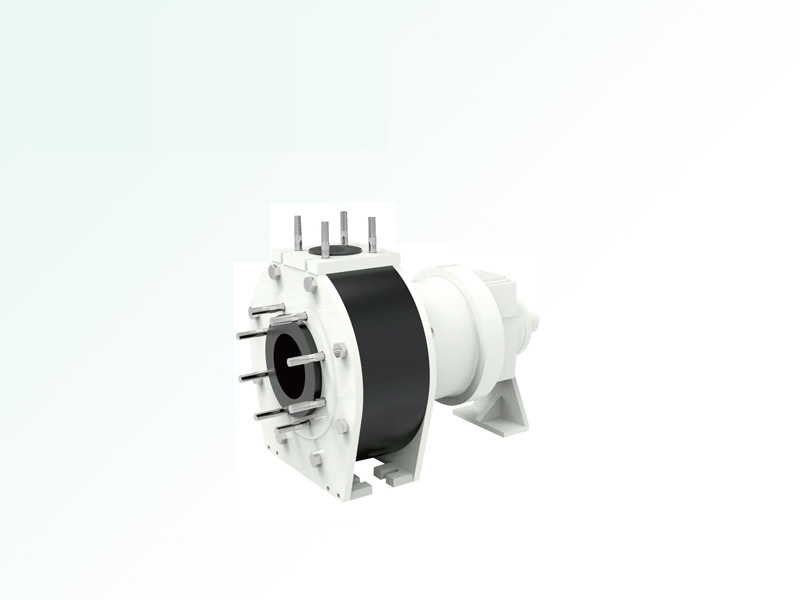

1.TICS無泄漏石墨磁力泵是我公司自行研發設計全密封、無泄漏、無污染、耐強酸、耐高溫的新型工業用泵；
2. 泵殼整體石墨材料，厚度20mm-50mm,對夾式設計，金屬支撐，限制了全塑石墨泵殼受熱軸向膨脹和受壓軸向壓縮性，克服了泵體產生壓縮變形、冷縮變形等導致機械性能不穩定的缺點，采用CFD計算機流體力學設計水力部件進行模塊設計和模壓成型，應能承受高速高壓液體的沖刷，且能夠承受瞬時熱沖擊的影響，具有高抗汽蝕能力、尺寸****、流道光潔、互換性好，有效地提升了石墨耐腐耐磨泵的運行穩定性。
3，內轉子葉輪采用全石墨內包先進工藝，磁鋼采用釤鈷永磁體，耐高溫320度；
4．隔離套，泵軸，軸套，口環采用SSIC材料，耐高溫，耐強酸，不會出現傳統磁力泵泵軸斷裂的問題，并設置了潤滑槽，有效地保證泵的使用壽命；
5.石墨是一種耐強酸，耐高溫的材料，可輸送強酸性等腐蝕性高溫介質； 密封采用封閉式靜密封，解決了介質泄漏。
7.無需獨立潤滑和冷卻水，降低了能耗。
8.直聯后拉式設計，無需拆卸管道，維修方便。
9.臥式安裝，結構緊湊、占地面積小，振動小，噪音低，運行特別平穩；
10.由聯軸器傳動變成同步拖動，不存在接觸和摩擦。功耗小、效率高，且具有阻尼減振作用，減少了電動機振動對泵的影響和泵發生氣蝕振動時對電動機的影響；
設計
?單級、石墨磁力驅動化工離心泵。
?尺寸和性能參數符合EN22858/ISO2858/ISO5199。
?重載型的水平設計、無密封、無漩渦電流。
產品用途：用于化工、醫藥、石油化工、磷酸，蒸發，環保行業輸送強酸性高溫的腐蝕性的、有危害的、被污染的或潔凈的介質。
TICS系列被認為：
?適用于困難的操作條件下的介質
?不銹鋼不足以抵抗其腐蝕的介質
?用于替代昂貴的稀有金屬（哈氏全合金，蒙乃爾、鉭等）制成的泵
?用于高溫的強酸性介質或其他有毒害性的介質 ?特別適用于高溫鹽酸，高溫硫酸，高溫混合酸及強酸性高溫介質；
性能范圍：設計壓力：1.6mpa；
口徑：25mm～400mm；
流量：5～1000m3/h；
三、性能參數表：
| 型號 |
轉速 r/min |
流量 m3/h |
揚程 m |
效率 ％ |
汽蝕余量 m |
進口X出口 |
電機功率 |
整機質量 kg |
| TICS25-20-125 | 2900 | 1.5 | 22 | 18 | 2.5 | 25×20 | 1.1 | 27 |
| 2 | 20 | 20 | 2.5 | |||||
| 3.2 | 18.5 | 24 | 3 | |||||
| TICS25-20-160 | 2900 | 1.5 | 34.3 | 19 | 2.5 | 25×20 | 1.5 | 36 |
| 2 | 32 | 22 | 2.5 | |||||
| 3.2 | 29.6 | 25 | 3 | |||||
| TICS25-20-200A | 2900 | 1.5 | 42 | 28 | 2.5 | 25×20 | 3 | 51 |
| 2 | 40 | 32 | 2.5 | |||||
| 3.2 | 38 | 30 | 3 | |||||
| TICS25-20-200 | 2900 | 1.5 | 52.5 | 18 | 2.5 | 25×20 | 3 | 51 |
| 2 | 50 | 20 | 2.5 | |||||
| 3.2 | 48 | 22 | 3 | |||||
| TICS25-20-250A | 2900 | 1.5 | 62 | 26 | 2.5 | 25×20 | 5.5 | 63 |
| 2 | 60 | 30 | 2.5 | |||||
| 3.2 | 58 | 28 | 3 | |||||
| TICS25-20-250B | 2900 | 1.5 | 72 | 26 | 2.5 | 25×20 | 7.5 | 63 |
| 2 | 70 | 30 | 2.5 | |||||
| 3.2 | 68 | 28 | 3 | |||||
| TICS25-20-250 | 2900 | 1.5 | 82 | 12 | 2.5 | 25×20 | 7.5 | 63 |
| 2 | 80 | 18 | 2.5 | |||||
| 3.2 | 78.5 | 26 | 3 | |||||
| TICS32-20-125 | 2900 | 2 | 22 | 20.5 | 2.5 | 32×20 | 1.5 | 30 |
| 3.2 | 20 | 20 | 2.5 | |||||
| 5.5 | 18.5 | 18 | 3 | |||||
| TICS32-20-160 | 2900 | 2 | 34.3 | 20.5 | 2.5 | 32×20 | 2.2 | 35 |
| 3.2 | 32 | 20 | 2.5 | |||||
| 5.5 | 29.6 | 18 | 3 | |||||
| TICS32-20-200A | 2900 | 2 | 42 | 25 | 2.5 | 32×20 | 4 | 61 |
| 3.2 | 40 | 24 | 2.5 | |||||
| 5.5 | 38 | 21.5 | 3 | |||||
| TICS32-20-200 | 2900 | 2 | 52.5 | 32 | 2.5 | 32×20 | 4 | 61 |
| 3.2 | 50 | 36 | 2.5 | |||||
| 5.5 | 48 | 34 | 3 | |||||
| TICS32-20-250A | 2900 | 2 | 62 | 22 | 2.5 | 32×20 | 7.5 | 71 |
| 3.2 | 60 | 26 | 2.5 | |||||
| 5.5 | 58 | 28.5 | 3 | |||||
| TICS32-20-250B | 2900 | 2 | 72 | 26 | 2.5 | 32×20 | 7.5 | 75 |
| 3.2 | 70 | 30 | 2.5 | |||||
| 5.5 | 68 | 28 | 3 | |||||
| TICS32-20-250 | 2900 | 2 | 82 | 26 | 2.5 | 32×20 | 7.5 | 75 |
| 3.2 | 80 | 30 | 2.5 | |||||
| 5.5 | 78.5 | 28 | 3 | |||||
| TICS40-25-125 | 2900 | 4.4 | 22 | 16 | 2.5 | 40×25 | 1.5 | 35 |
| 6.3 | 20 | 20 | 2.5 | |||||
| 8.3 | 18.5 | 23 | 3 | |||||
| TICS40-25-160 | 2900 | 4.4 | 34.3 | 30 | 2.5 | 40×25 | 3 | 40 |
| 6.3 | 32 | 31 | 2.5 | |||||
| 8.3 | 29.6 | 32 | 3 | |||||
| TICS40-25-200A | 2900 | 4.4 | 42 | 30 | 2.5 | 40×25 | 4 | 66 |
| 6.3 | 40 | 31 | 2.5 | |||||
| 8.3 | 38 | 32 | 3 | |||||
| TICS40-25-200 | 2900 | 4.4 | 52.5 | 26 | 2.5 | 40×25 | 5.5 | 66 |
| 6.3 | 50 | 33 | 2.5 | |||||
| 8.3 | 48 | 32 | 3 | |||||
| TICS40-25-250A | 2900 | 4.4 | 62 | 20 | 2.5 | 40×25 | 11 | 95 |
| 6.3 | 60 | 23 | 2.5 | |||||
| 8.3 | 58 | 30 | 3 | |||||
| TICS40-25-250B | 2900 | 4.4 | 72 | 24 | 2.5 | 40×25 | 11 | 95 |
| 6.3 | 70 | 28 | 2.5 | |||||
| 8.3 | 68 | 28 | 3 | |||||
| TICS40-25-250 | 2900 | 4.4 | 82 | 24 | 2.5 | 40×25 | 11 | 95 |
| 6.3 | 80 | 28 | 2.5 | |||||
| 8.3 | 78.5 | 28 | 3 | |||||
| TICS50-32-125 | 2900 | 7.5 | 22 | 43 | 2 | 50×32 | 2.2 | 44 |
| 12.5 | 20 | 51 | 2 | |||||
| 15 | 18.5 | 49 | 2.5 | |||||
| TICS50-32-160 | 2900 | 7.5 | 34.3 | 35 | 2 | 50×32 | 3 | 61 |
| 12.5 | 32 | 47 | 2 | |||||
| 15 | 29.6 | 47 | 2.5 | |||||
| TICS50-32-200A | 2900 | 7.5 | 42 | 28 | 2 | 50×32 | 7.5 | 113 |
| 12.5 | 40 | 39 | 2 | |||||
| 15 | 38 | 43 | 2.5 | |||||
| TICS50-32-200 | 2900 | 7.5 | 52.5 | 28 | 2 | 50×32 | 7.5 | 113 |
| 12.5 | 50 | 40 | 2 | |||||
| 15 | 48 | 48 | 2.5 | |||||
| TICS50-32-250A | 2900 | 7.5 | 62 | 23 | 2 | 50×32 | 7.5 | 180 |
| 12.5 | 60 | 33 | 2 | |||||
| 15 | 58 | 36.5 | 2.5 | |||||
| TICS50-32-250B | 2900 | 7.5 | 72 | 23 | 2 | 50×32 | 11 | 180 |
| 12.5 | 70 | 33 | 2 | |||||
| 15 | 68 | 36.5 | 2.5 | |||||
| TICS50-32-250 | 2900 | 7.5 | 82 | 23 | 2 | 50×32 | 11 | 180 |
| 12.5 | 80 | 33 | 2 | |||||
| 15 | 78.5 | 36.5 | 2.5 | |||||
| TICS65-50-125 | 2900 | 15 | 21.8 | 46 | 2 | 65×50 | 3 | 80 |
| 25 | 20 | 56 | 2 | |||||
| 30 | 18.5 | 65 | 2.5 | |||||
| TICS65-50-160 | 2900 | 15 | 35 | 46 | 2 | 65×50 | 5.5 | 97 |
| 25 | 32 | 56 | 2 | |||||
| 30 | 30 | 65 | 2.5 | |||||
| TICS65-40-200A | 2900 | 15 | 42 | 41 | 2 | 65×40 | 11 | 130 |
| 25 | 40 | 52 | 2 | |||||
| 30 | 38 | 53.5 | 2.5 | |||||
| TICS65-40-200 | 2900 | 15 | 53 | 34 | 2 | 65×40 | 11 | 120 |
| 25 | 50 | 46 | 2 | |||||
| 30 | 47 | 50 | 2.5 | |||||
| TICS65-40-250A | 2900 | 15 | 62 | 28 | 2 | 65×40 | 15 | 203 |
| 25 | 60 | 39 | 2 | |||||
| 30 | 58 | 42.5 | 2.5 | |||||
| TICS65-40-250B | 2900 | 15 | 72 | 28 | 2 | 65×40 | 18.5 | 203 |
| 25 | 70 | 39 | 2 | |||||
| 30 | 68 | 42.5 | 2.5 | |||||
| TICS65-40-250 | 2900 | 15 | 82 | 33 | 2 | 65×40 | 18.5 | 203 |
| 25 | 80 | 48 | 2 | |||||
| 30 | 78 | 50 | 2.5 | |||||
| TICS65-40-315A | 2900 | 15 | 105 | 28 | 2.5 | 65×40 | 30 | 345 |
| 25 | 100 | 39 | 2.5 | |||||
| 30 | 98 | 42.5 | 3 | |||||
| TICS65-40-315 | 2900 | 15 | 127 | 28 | 2.5 | 65×40 | 30 | 345 |
| 25 | 125 | 39 | 2.5 | |||||
| 30 | 123 | 42.5 | 3 | |||||
| TICS80-65-125 | 2900 | 30 | 22.5 | 52 | 3 | 80×65 | 5.5 | 125 |
| 50 | 20 | 65 | 3 | |||||
| 60 | 18 | 70 | 3.5 | |||||
| TICS80-65-160 | 2900 | 30 | 36 | 60 | 2.5 | 80×65 | 11 | 137 |
| 50 | 32 | 64 | 2.5 | |||||
| 60 | 29 | 53 | 3 | |||||
| TICS80-50-200A | 2900 | 30 | 42 | 53 | 2.5 | 80×50 | 15 | 207 |
| 50 | 40 | 63 | 2.5 | |||||
| 60 | 38 | 62 | 3 | |||||
| TICS80-50-200 | 2900 | 30 | 53 | 53 | 2.5 | 80×50 | 15 | 207 |
| 50 | 50 | 63 | 2.5 | |||||
| 60 | 47 | 55 | 3 | |||||
| TICS80-50-250A | 2900 | 30 | 62 | 44 | 2.5 | 80×50 | 22 | 275 |
| 50 | 60 | 57 | 2.5 | |||||
| 60 | 58 | 59 | 3 | |||||
| TICS80-50-250B | 2900 | 30 | 72 | 44 | 2.5 | 80×50 | 30 | 275 |
| 50 | 70 | 57 | 2.5 | |||||
| 60 | 68 | 59 | 3 | |||||
| TICS80-50-250 | 2900 | 30 | 84 | 48 | 2.5 | 80×50 | 30 | 275 |
| 50 | 80 | 56 | 2.5 | |||||
| 60 | 75 | 50 | 3 | |||||
| TICS80-50-315A | 2900 | 30 | 105 | 39 | 2.5 | 80×50 | 37 | 390 |
| 50 | 100 | 51 | 2.5 | |||||
| 60 | 98 | 52.5 | 3 | |||||
| TICS80-50-315 | 2900 | 30 | 128 | 39 | 2.5 | 80×50 | 37 | 390 |
| 50 | 125 | 51 | 2.5 | |||||
| 60 | 123 | 52.5 | 3 | |||||
| TICS100-80-125 | 2900 | 60 | 24 | 64 | 4 | 100×80 | 11 | 193 |
| 100 | 20 | 65 | 4.5 | |||||
| 120 | 16.5 | 63 | 5 | |||||
| TICS100-80-160 | 2900 | 60 | 36 | 60 | 3.5 | 100×80 | 15 | 214 |
| 100 | 32 | 70 | 4 | |||||
| 120 | 28 | 65 | 5 | |||||
| TICS100-65-200A | 2900 | 60 | 42 | 63 | 3 | 100×65 | 18.5 | 213 |
| 100 | 40 | 72 | 3.6 | |||||
| 120 | 38 | 71 | 4.8 | |||||
| TICS100-65-200 | 2900 | 60 | 54 | 63 | 3 | 100×65 | 22 | 246 |
| 100 | 50 | 68 | 3.6 | |||||
| 120 | 47 | 56 | 4.8 | |||||
| TICS100-65-250A | 2900 | 60 | 62 | 57 | 3.5 | 100×65 | 30 | 372 |
| 100 | 60 | 68 | 3.8 | |||||
| 120 | 58 | 67 | 4.8 | |||||
| TICS100-65-250B | 2900 | 60 | 72 | 57 | 3.5 | 100×65 | 37 | 372 |
| 100 | 70 | 68 | 3.8 | |||||
| 120 | 68 | 67 | 4.8 | |||||
| TICS100-65-250 | 2900 | 60 | 87 | 60 | 3.5 | 100×65 | 37 | 372 |
| 100 | 80 | 68 | 3.8 | |||||
| 120 | 74.5 | 67 | 4.8 | |||||
| TICS100-65-315A | 2900 | 60 | 105 | 48 | 3 | 100×65 | 75 | 685 |
| 100 | 100 | 62 | 3.6 | |||||
| 120 | 98 | 64 | 4.2 | |||||
| TICS100-65-315 | 2900 | 60 | 133 | 63 | 3 | 100×65 | 75 | 685 |
| 100 | 125 | 65 | 3.6 | |||||
| 120 | 118 | 62 | 4.2 | |||||
| TICS125-100-200 | 2900 | 120 | 57.5 | 63 | 4.5 | 125×100 | 45 | 378 |
| 200 | 50 | 75 | 4.5 | |||||
| 240 | 44.5 | 74 | 5 | |||||
| TICS125-100-250A | 2900 | 120 | 62 | 63 | 3.8 | 125×100 | 55 | 447 |
| 200 | 60 | 75 | 4.2 | |||||
| 240 | 58 | 74 | 5 | |||||
| TICS125-100-250B | 2900 | 120 | 72 | 57 | 3.8 | 125×100 | 75 | 447 |
| 200 | 70 | 68 | 4.2 | |||||
| 240 | 68 | 67 | 5 | |||||
| TICS125-100-250 | 2900 | 120 | 87 | 57 | 3.8 | 125×100 | 75 | 447 |
| 200 | 80 | 68 | 4.2 | |||||
| 240 | 72 | 67 | 5 |
